EVDC LITE
The EVDC charger offers convenience for a wide range of users.
Quality Assurance: The EVDC charger is CE Fully Tested and Certified, meeting strict quality and safety standards, providing users with confidence in its reliability and performance
Support and Warranty: Benefit from a comprehensive 3-year warranty and dedicated customer support, providing peace of mind and assistance in case of any issues or questions.
Ease of Installation: Straightforward and cost-effective. Users can save money on installation by simply setting up a basic 14-50R outlet, potentially saving hundreds of dollars.
Universal compatibility: Manufactured to be compatible with all Electric Vehicles and Plug-in Hybrid Electric Vehicles (PHEVs) sold in North America and Europe.
Product information
It is critical to avoid over-tightening the connecting cable while it is attached to the vehicle under any circumstances.
The positioning of the charging cable should be carefully managed to prevent any instances of being stepped on, tripped over, or exposed to damage or strain.
Refrain from closing the garage door on the charging cord.
The EVDC charger must not be lifted or carried by the power supply cord or the EV cable. It is recommended to lift or carry the charger by elevating the charger’s enclosure.
Prior to cleaning the unit, it is imperative to disconnect the main service power to your charger.
Under no circumstances should cleaning solvents be used on any part of the charger. Instead, use a clean, dry cloth to effectively remove accumulated dust and dirt.
Adjustable amperage settings.
High-performance smart EV charger.
Tailored for home and business use, the EVDC PRO provides seamless peer-to-peer sharing to earn FIAT or EVDC tokens.
Whether placed indoors or outdoors, it ensures rapid and effective charging for all EVs.
KEY FEATURES
Monetized Charging
Share your EV charger with others and earn FIAT or EVDC tokens effortlessly.
Fast 22kW Charging
Reduce charging times with high-speed power delivery.
Smart Connectivity
Control and monitor charging via the EVDC app.
Indoor & Outdoor Use
Durable, weatherproof design for any location.
The EVDC PRO is compatible with the EVDC app: Add your charger to the P2P EVDC Network. (Instructions provided with the package.)
GENERAL SPECIFICATIONS
|
Model |
EVDC PRO |
|
Cable Length |
5 meter |
|
Color |
Black |
|
Charging Protocol |
SAE J1772 Type 2 |
|
Cables Specs. |
Charging Cable : 5m L, 17mm ⌀. Hardwire Cable: NEMA 14-50P, 0.5m L, 19mm ⌀. |
|
Dimensions |
(330L x 230 x 90D)mm |
|
Weight |
5.4 lbs (2.50kg) without cable |
|
Operating Temperature |
-30 °C to 45 °C |
|
Storage Temperature |
-30 °C to 60 °C |
ELECTRICAL SPECIFICATIONS
|
Charging Power |
22kW |
|
Rated Current |
32A, 3 phases |
|
Rated Voltage AC ±10% |
Level 2 380V (3 Phase) |
|

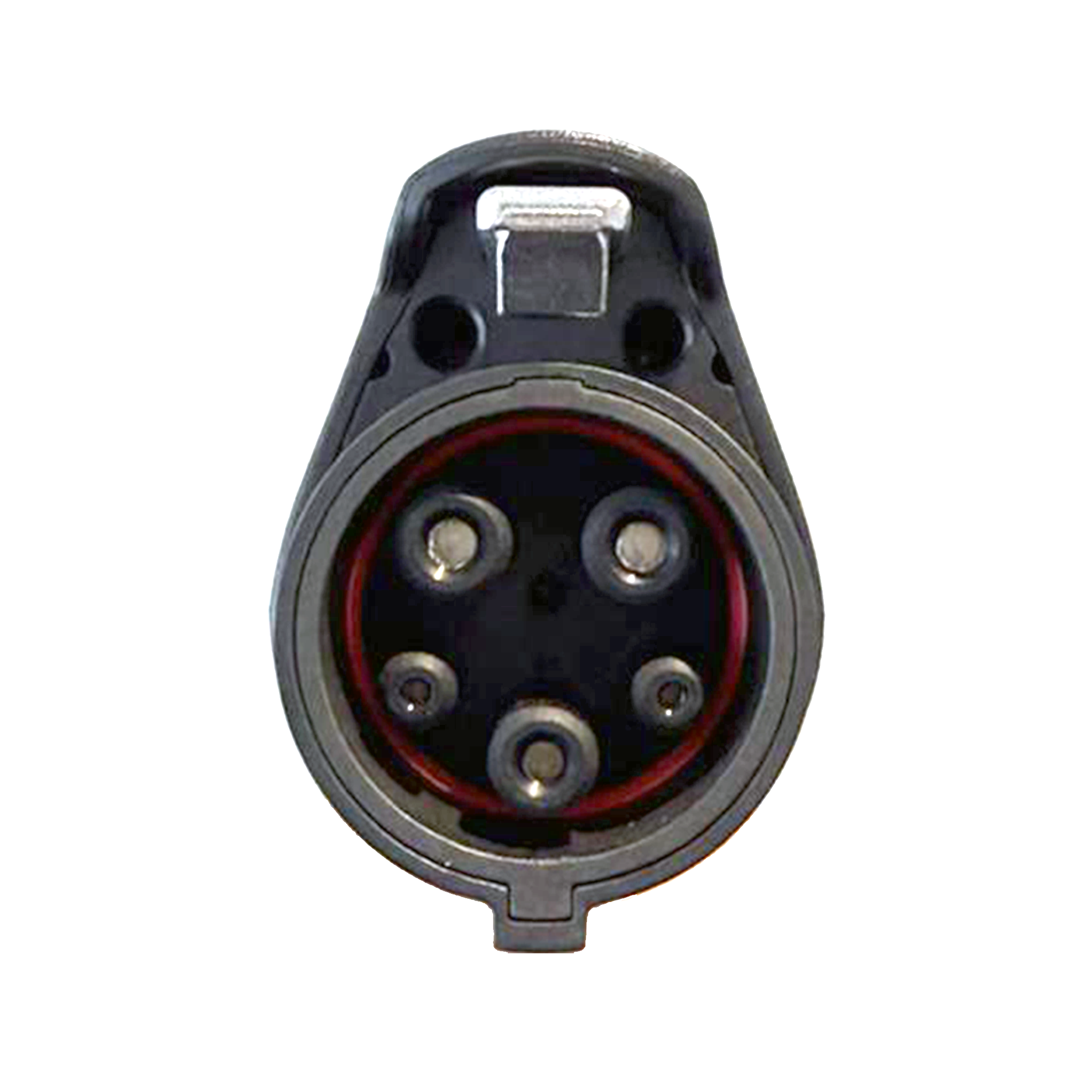

Connector Type |
SAE J1772 Type 2 |
|
Configurable Current |
From 16A to rated current |
|
Rated Frequency |
50-60 Hz |
|
CCD |
CCD20 |
|
Power Input Connection |
Plug Connection 380V |
AMBIENT CONDITIONS
|
Use |
Indoor & Outdoor |
|
Installation |
Wall mounted (mandatory) |
|
Temperature Behavior |
Ventilation if overheating & Shut-down |
|
Relative air humidity |
Non condesing (5% - 90%) |
|
Space requirements |
Solid surface, Well Ventilated, 0.46m> from an outlet, Charger >1.98m from water hose, 1.524 to 1.651m from ground |
STATUS LIGHT KEY
 |
Fault Mode The EVDC charger is in error mode. Please consult a certified electrician or contact our customer service. OVER VOLTAGE: 4 x FAST + 1 x SLOW UNDER VOLTAGE: 3 x FAST + 2 x SLOW OVER TEMPERATURE: 2 x FAST + 3 x SLOW EMERGENCY STOP: 1 x FAST + 1 x SLOW UNEARTHED: 7 x FAST + 1 x SLOW OVER CURRENT: 2 x FAST + 1 x SLOW SHORT CIRCUIT: 5 x FAST + 2 x SLOW |
 |
Ready to Charge The EVDC charger is ready to use. |
 |
Fully Charged The electric vehicle’s battery has been completely charged and is ready for use. |
 |
Charging (Flashing Green) The EVDC charger is currently in the process of charging the electric vehicle. |
Installation Guides & Documents
HOLE TEMPLATE
BUSINESS IN A BOX
Become a Partner
Turn your EV charger into a passive income source with EVDC PRO 22kW – the future of smart, shareable charging!
