EVDC PRO UNTETHERED

AC Charger, Wall-mounted.

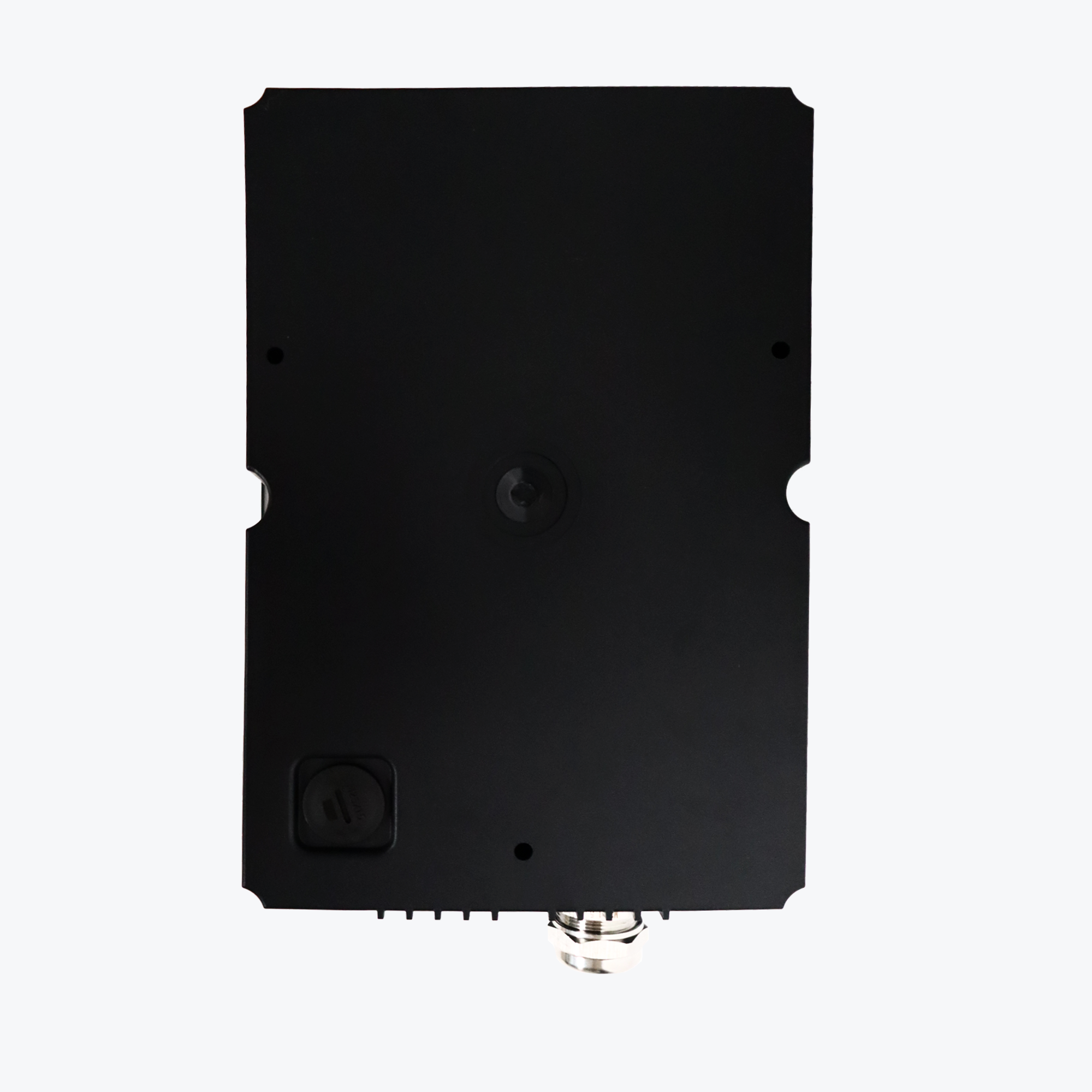

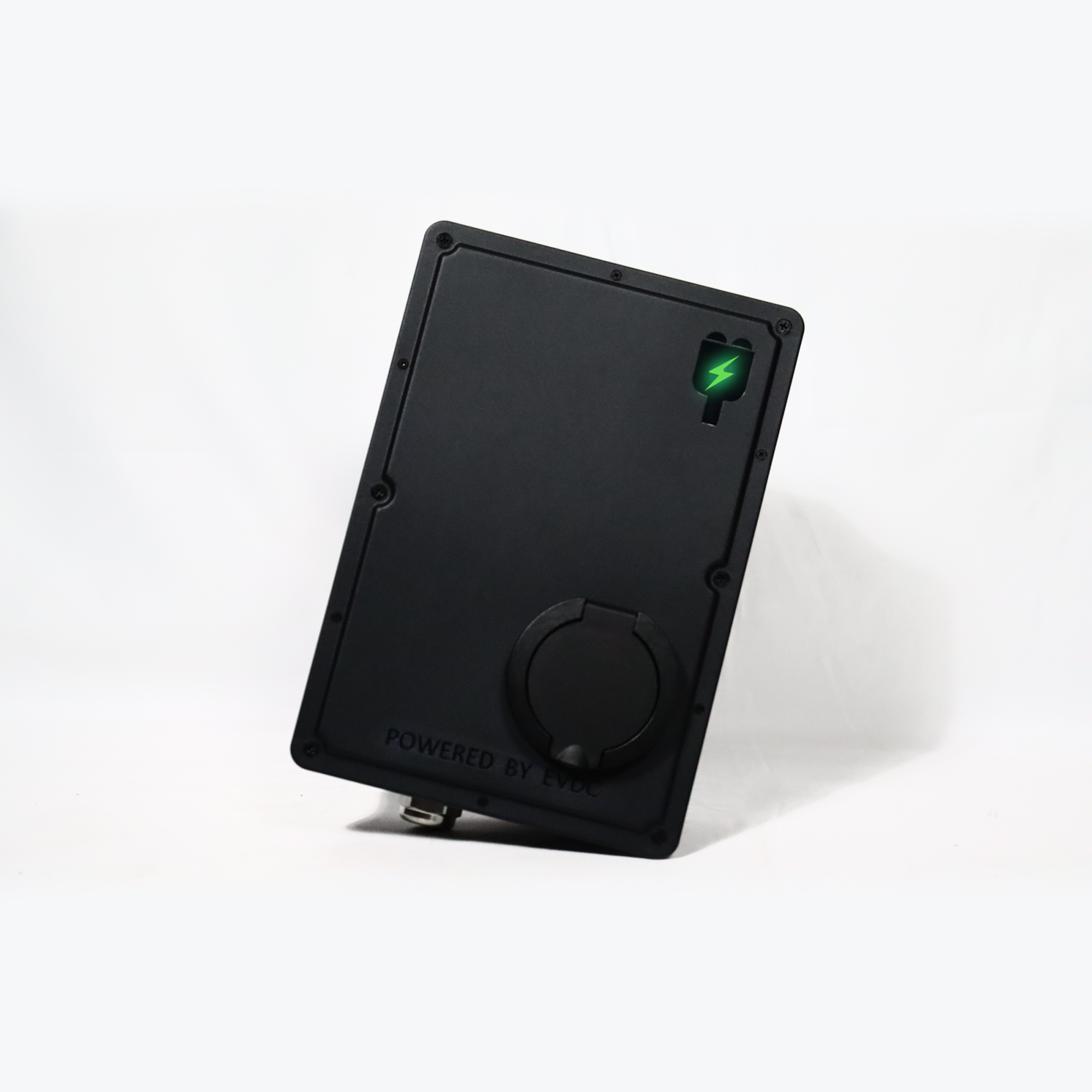

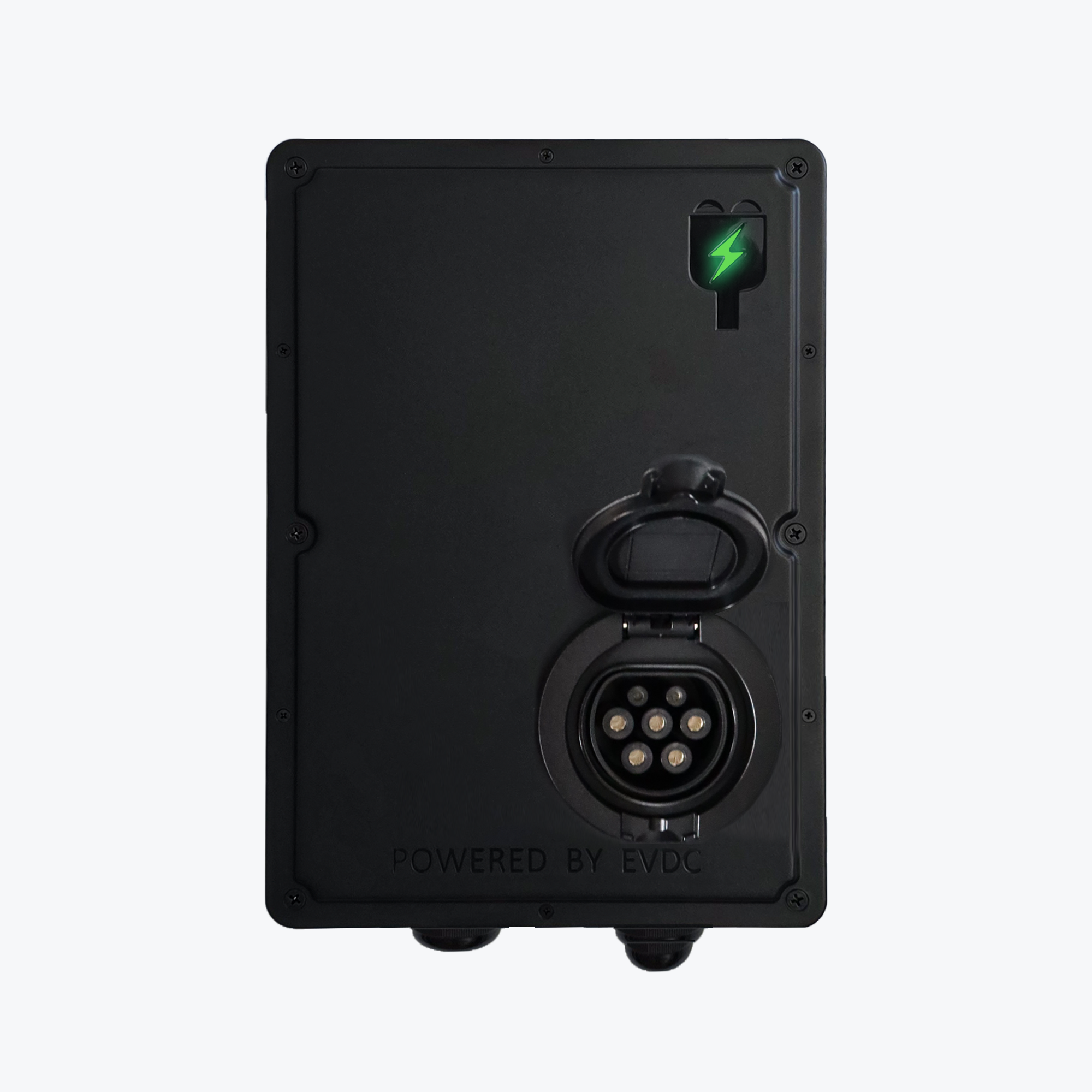

Monitzed EVDC PRO 22kW/32A Untethered
Monitzed EVDC PRO 22kW/32A Untethered
Monitzed EVDC PRO 22kW/32A Untethered
Monitzed EVDC PRO 22kW/32A Untethered
Monitzed EVDC PRO 22kW/32A Untethered
  • Sold out
EVDC Network Art: PRO-32A-HWUB-1

Technical Specifications

Specification Details
Charging Type Level 2 AC Charging
Installation Wall-Mounted
Connector Type 2 Socket (IEC 62196-2)
Power Output 7.4 kW (1-Phase) / 22 kW (3-Phase)
Input Voltage 230 V AC (1-Phase) / 400 V AC (3-Phase)
Connectivity 4G (SIM Card enabled upon connection)
Communication Protocol OCPP Enabled
Enclosure Rating IP54
Operating Environment Indoor & Outdoor
Design Untethered ( Allows drivers to use their own charging cable)
Construction Vandal-Resistant Housing with Stainless Steel Glands
Monitoring Real-Time Monitoring & Remote Diagnostics
Warranty 3-Year Limited Warranty
Certification CE and RoHS certified



*3-Year Warranty and professional technical support.

$227.07 USD -84% $1,368.15 USD
$227.07 USD

  • Vandal-Resistant Construction

    Designed for commercial and public installations.

  • Smart Charging with OCPP Compatibility

    Charging management platforms, payment systems, and remote network operations.

  • Real-Time Monitoring & Remote Diagnostics

    Charging sessions, live performance data and remote diagnostics.

  • Built for Outdoor Performance

    Engineered with an IP54-rated enclosure and premium stainless-steel cable glands.

  • Advanced Connectivity

    Equipped with a pre-installed 4G SIM card, the EVDC PRO remains connected without requiring local network infrastructure, ideal in locations where Wi-Fi is unavailable or unreliable.

  • Fully Certified for the European Market

    CE and RoHS certified
